Discontinued - 7 watt LED Downlight Retrofit; 3" Baffle; 3000K; Miniature 2 Pin Round base; 12
Image may not reflect selected features

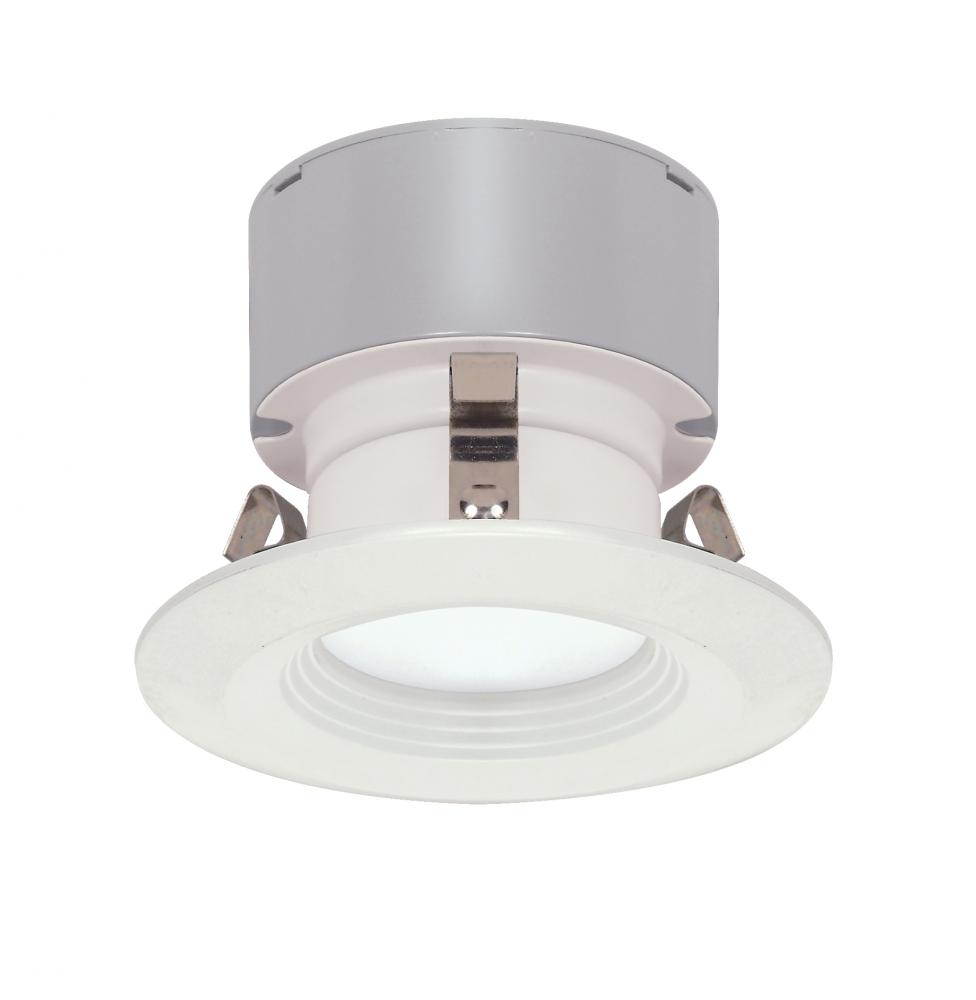

Discontinued - 7 watt LED Downlight Retrofit; 3" Baffle; 3000K; Miniature 2 Pin Round base; 12 (S9128) by Satco Products Inc.
Discontinued - 7 watt LED Downlight Retrofit; 3" Baffle; 3000K; Miniature 2 Pin Round base; 12 volts; Dimmable
Product Specification
Item #
S9128
Dimensions
Height: 3.00"
Width: 4.00"
Additional product details
Internal #
40JQXPU
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Style
Contemporary
Option
LED , Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Contemporary
Additional Info
The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require a
Avg Rated Hours
35000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
4
Dimmable
Yes-Dimmable
Each Height
5.07
Each Length
4.92
Each Width
3.54
Lumens
401L
Tariff Code
8539.50.0091
Warranty
3 Year Limited - Fixtures
Amps
0.583A
ANSI Base
Bi-Pin Adapter
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
Can Size
3 in.
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0511
Each Quantity
1
Efficacy
57.29 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
50W
Indoor Outdoor
Indoor
JA8 Compliant
No
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
SDS class
LED_Fixture
Short Description
7WLED/RDL/3"BFL/12V 90CRI 3K
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
No
Manufactured By
Satco Products Inc.
