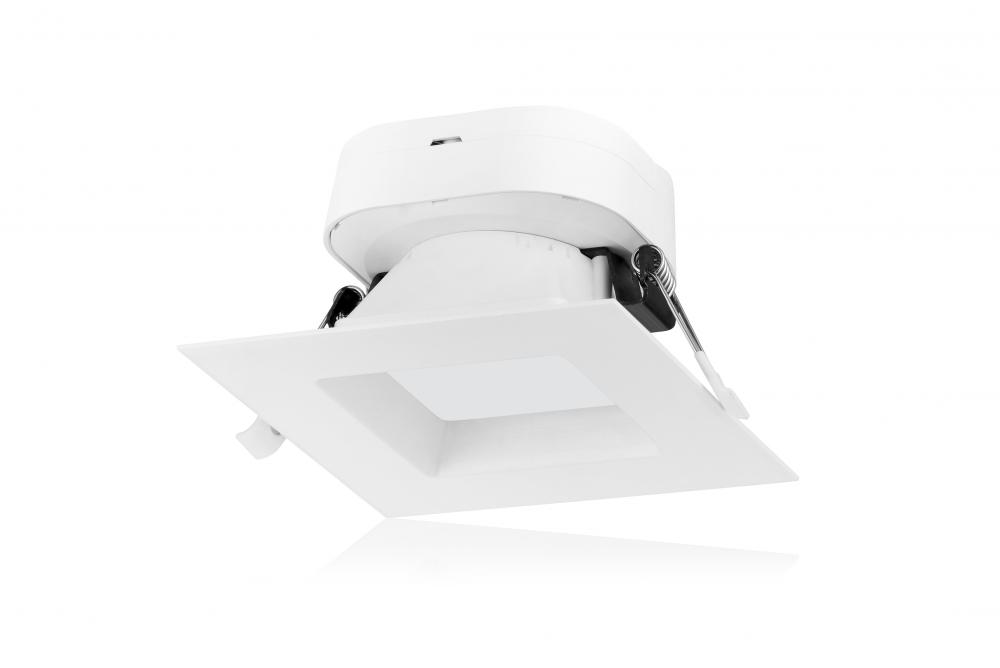

7 watt LED Direct Wire Downlight; 4 inch; 3000K; 120 volt; Dimmable; Square (S11701)
by Satco Products Inc.
7 watt LED Direct Wire Downlight; 4 inch; 3000K; 120 volt; Dimmable; Square
Product Specification
Item #
S11701
Dimensions
Height: 3.00"
Width: 4.94"
Additional product details
Internal #
40JQURP
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Avg Rated Hours
40000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Yes-Dimmable
Each Height
5.43
Each Length
5.9
Each Width
3.35
Length
4.94
Lumens
490L
Tariff Code
9405.11.8010
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.058A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.33 in. Cutout
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0621
Each Quantity
1
Efficacy
70.00 LPW
FCC Compliant
Yes
Feature 1
Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.
Feature 2
Fixture dimensional specifications (in inches), Height: 3.00, Width: 4.94, Length: 4.94
Feature 3
Direct Wired installation; Wet rated, for indoor use
Feature 4
Integrated LED
Feature 5
90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option
Feature 6
5 year limited warranty. See manufacturer website for details
Finish Family
White
Fixture shape
Square
IC Rated
Yes
Incandescent Equivalent
45W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Long Description
Satco's S11701, 4 inch square 7 watt dimmable LED direct wire downlight retrofit recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior, 90 CRI light in 3000K, this fixture features easy clip in install
Material
Aluminum / Polycarbonate (PC)
Max Drywall Thickness
7/8 in.
Minimum Compartment Size
Height: 3.94 in.
Mounting Procedure
Ceiling
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The 4 inch square 7 watt dimmable LED direct wire downlight retrofit recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior, 90 CRI light in 3000K, this fixture features easy clip in installation.
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
7WLED/DW/SQ/4/30K/120V
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.35
Manufactured By
Satco Products Inc.
