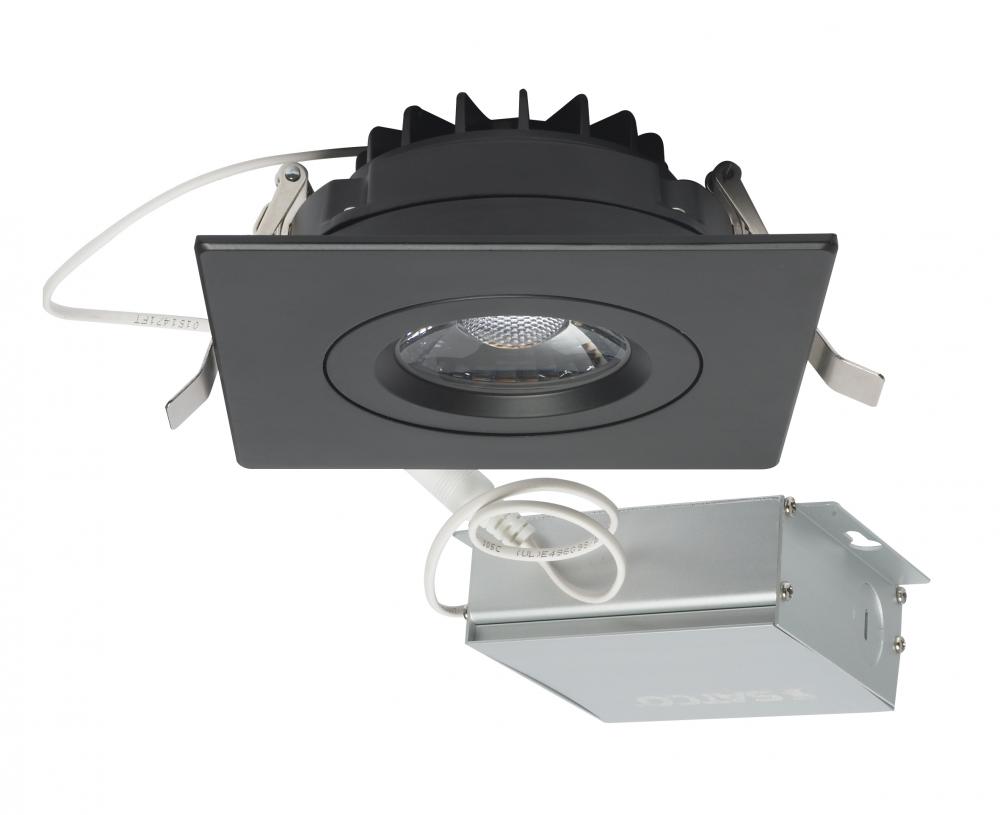

12 watt LED Direct Wire Downlight; Gimbaled; 4 inch; 3000K; 120 volt; Dimmable; Square; Remote (S11622)
by Satco Products Inc.
12 watt LED Direct Wire Downlight; Gimbaled; 4 inch; 3000K; 120 volt; Dimmable; Square; Remote Driver; Black
Product Specification
Item #
S11622
Dimensions
Height: 2.00"
Width: 4.88"
Additional product details
Internal #
40JQUR5
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Black
Style
Traditional
Option
LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Additional Info
Integrated j-box for direct wire installation
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Yes-Dimmable
Each Height
5.39
Each Length
7.24
Each Width
3.54
Length
4.88
Lumens
850L
Tariff Code
9405.11.8010
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.100A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
40
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.25 in. Cutout
Clearance Height
3
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0799
Each Quantity
1
Efficacy
70.83 LPW
FCC Compliant
Yes
Feature 1
Length: 4.88 inches, Width: 4.88 inches, Height: 2.00 inches
Feature 2
Dimmable
Feature 3
Wet location rated for indoor use
Feature 4
3000K Warm White Light
Feature 5
Superior 90 CRI light quality
Feature 6
5 year limited warranty
Feature 7
850 lumens
Feature 8
Rated for 50,000 hours
Feature 9
FCC and RoHS compliant
Finish Family
Black
Fixture shape
Square
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
JA8 Compliant
Yes
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
Satco's S11622 12 watt, 4 inch LED gimbaled, direct wire downlight is an easy to install, low maintenance lighting solution for residential or commercial use. Illuminate your kitchen, living room, or work space with this square downlight that fits into
Material
Aluminum
Max Drywall Thickness
1-1/8 in.
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
Rec Spacing Between Fixtures
4 ft. to 6 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 12 watt, 4 inch LED gimbaled, direct wire downlight is an easy to install, low maintenance lighting solution for residential or commercial use. Illuminate your kitchen, living room, or work space with this square downlight that fits into tight
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
12WLED/DW/GBL/4/930/SQ/RD/BK
Sloped Ceiling Compatible
Yes
Specification Notes
Aiming Angle: 30dg
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Trim Color
Black
Wattage Selectable
No
Weight Lb.
1.47
Manufactured By
Satco Products Inc.
