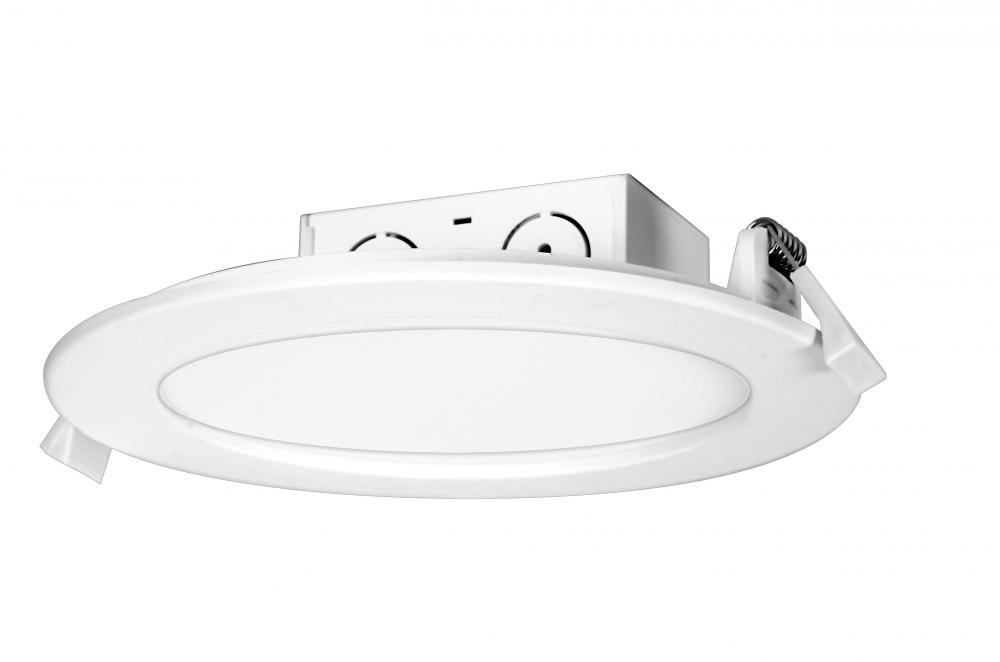

11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 3000K; 120 volt; Dimmable
Image may not reflect selected features
11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 3000K; 120 volt; Dimmable (S29062) by Satco Products Inc.
11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 3000K; 120 volt; Dimmable
Product Specification
Item #
S29062
Dimensions
Height: 1.94"
Width: 7.13"
Additional product details
Internal #
40JQVRK
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Style
Contemporary
Option
LED , Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Contemporary
Avg Rated Hours
40000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Diameter
7.13
Dimmable
Yes-Dimmable
Each Height
7.09
Each Length
8.460000000000001
Each Width
2.64
Lumens
800L
Tariff Code
9405.10.8010
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.097A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
100
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
6.4375 in. Cutout
Connection
Direct Wired
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.0916
Each Quantity
1
Efficacy
68.97 LPW
FCC Compliant
Yes
Finish Family
White
Fixture shape
Round
IC Rated
Yes
Incandescent Equivalent
65W
Indoor Outdoor
Indoor
JA8 Compliant
No
Max Drywall Thickness
3/4 in.
Minimum Compartment Size
Diameter: 6.14 in. Height: 2.36 in.
Mounting Procedure
Ceiling
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
1
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cULus - Classified
SDS class
LED_Fixture
Short Description
11.6WLED/DW/EL/5-6/30K/120V
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
No
Manufactured By
Satco Products Inc.
